Steel wedge gate valve with rising spindle DN50-1400 РN16
Nominal diameter: from 50 to 1400 mm Nominal pressure: 1.6 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)

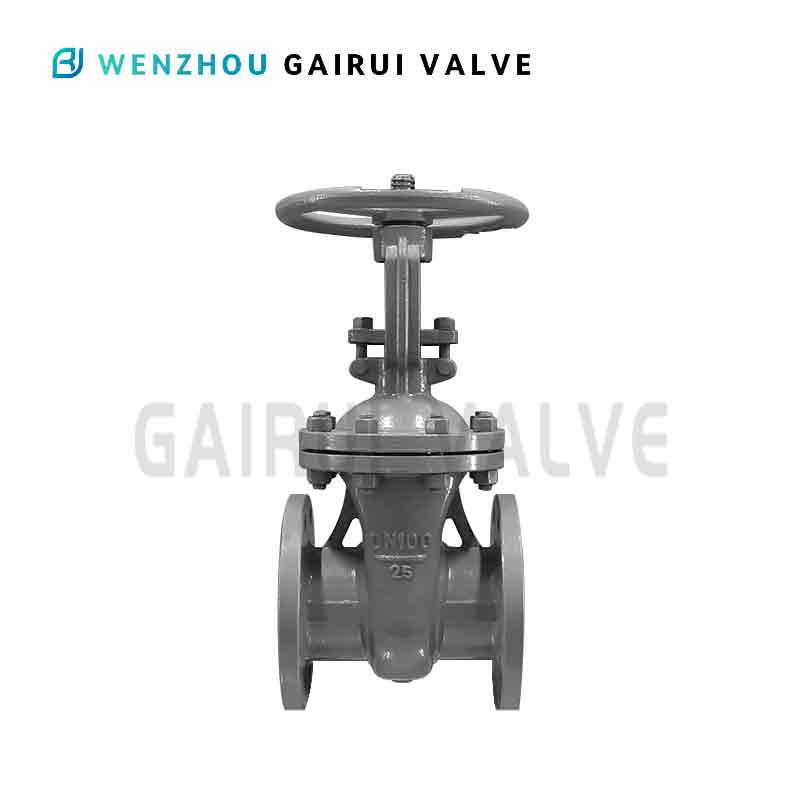

Steel wedge gate valve with rising spindle DN50-1400 PN25
Nominal diameter: from 50 to 1400 mm Nominal pressure: 2.5 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)

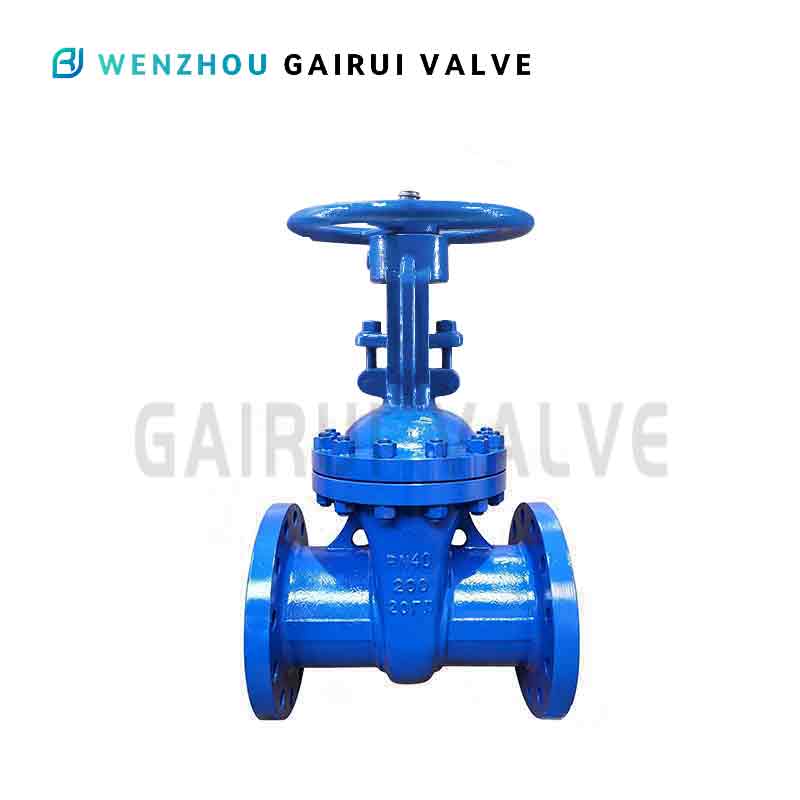

Steel wedge gate valve with rising spindle DN50-800 PN40
Nominal diameter: from 50 to 800 mm Nominal pressure: 4.0 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)

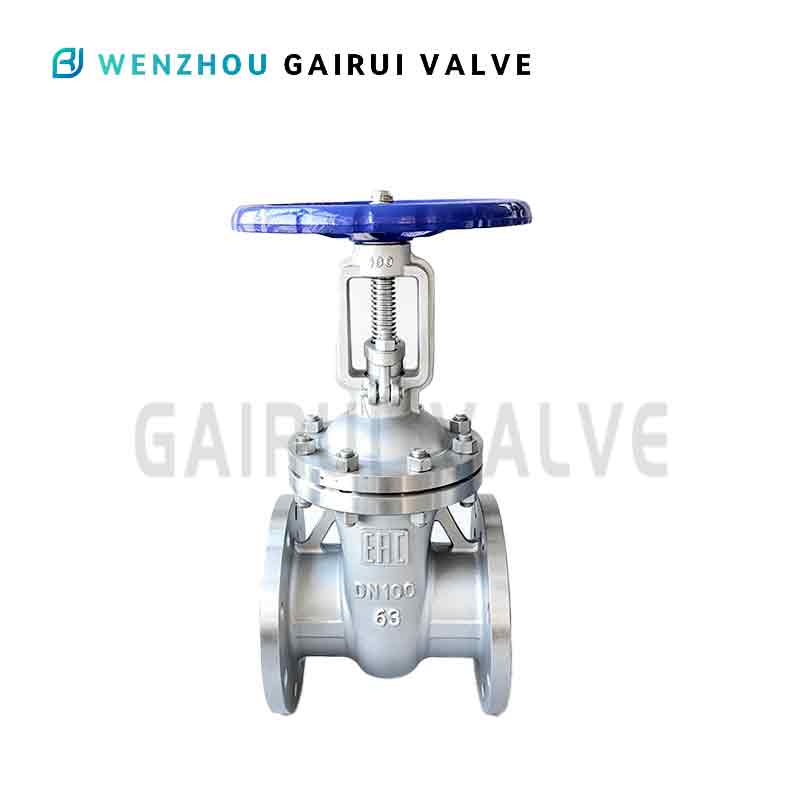

Steel wedge gate valve with rising spindle DN50-600 PN63
Nominal diameter: from 50 to 600 mm Nominal pressure: 6.3 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)

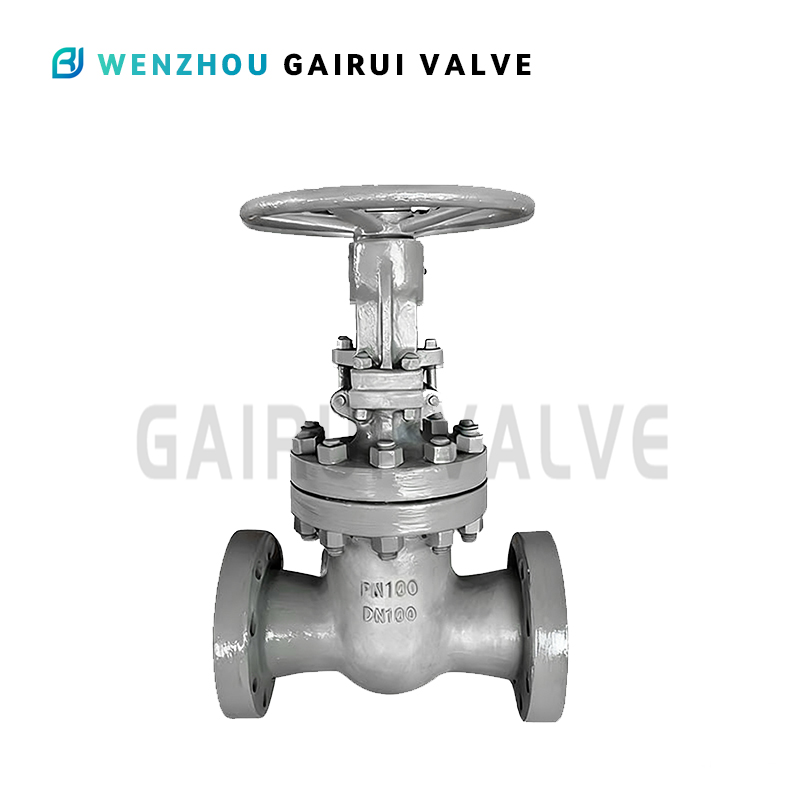

Steel wedge gate valve with rising spindle DN50-500 PN100
Nominal diameter: from 50 to 500 mm Nominal pressure: 10 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)
Steel wedge gate valve with rising spindle DN50-300 РN160
Nominal diameter: from 50 to 300 mm Nominal pressure: 16 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)
Steel wedge gate valve with rising spindle DN50-300 PN250
Nominal diameter: from 50 to 500 mm Nominal pressure: 25 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)
Steel wedge gate valve with non-rising spindle DN300-1400 PN25
Nominal diameter: from 300 to 1400 mm Nominal pressure: 2.5 MPa Working medium: water, steam, oil products Working medium temperature: up to 425 °C (carbon steels) up to 525 °C (stainless steels)
Wedge gate valve stamp-welded DN300-2400 RN 1-10
Nominal diameter: from 300 to 2400 mm Nominal pressure: 0.1 MPa – 1.0 MPa Working medium: water, steam Working medium temperature: up to 200 °C (carbon steels) up to 525 °C (stainless steels)
Cast iron parallel gate valve with rising spindle DN50-800 PN10
Nominal diameter: from 50 to 800 mm Nominal pressure: 1.0 MPa – 1.6 MPa Working medium temperature: up to 225 °C Working medium: water and air
Cast iron gate valves with rubber wedge DN50-DN800 РN16
Nominal diameter: from 50 to 800 mm Nominal pressure: 1.6 MPa Working medium temperature: up to 120 °C Working medium: water and air
Wedge valves
WENZHOU GAIRUI VALVE.CO.LTD is a Chinese company that sells pipeline fittings according to the Russian Gost standard. Our main products are: Gate valve, Valve, Ball valve, Non-return and lift valve, Butterfly valve. They can be flanged, threaded and welded.
Our rule is high quality products、competitive price, timely delivery and most satisfactory services. We cordially look forward to our cooperation, and invite you to our factory to inspect our products and production!
