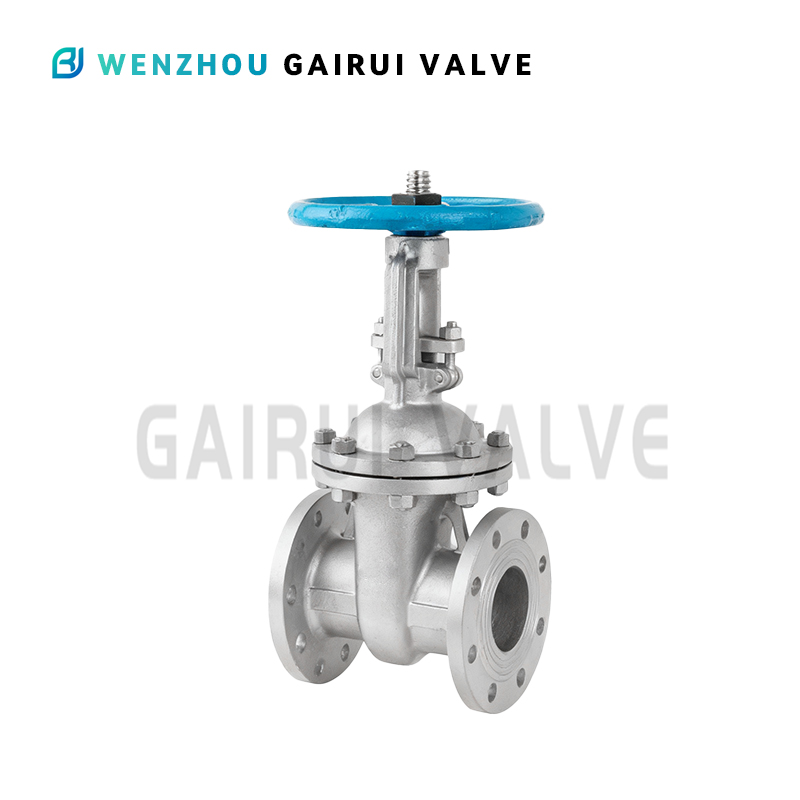

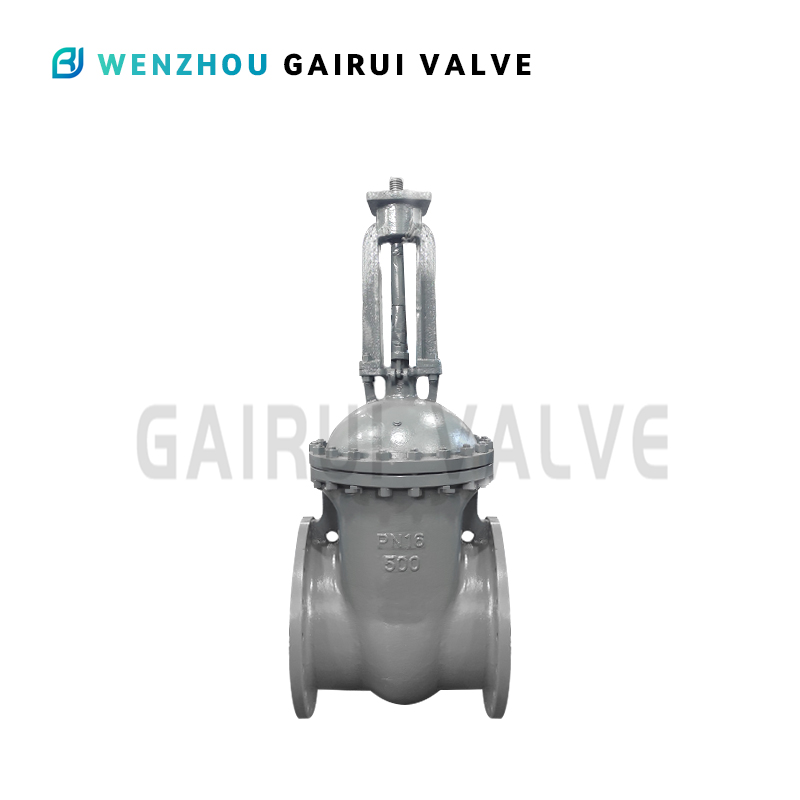

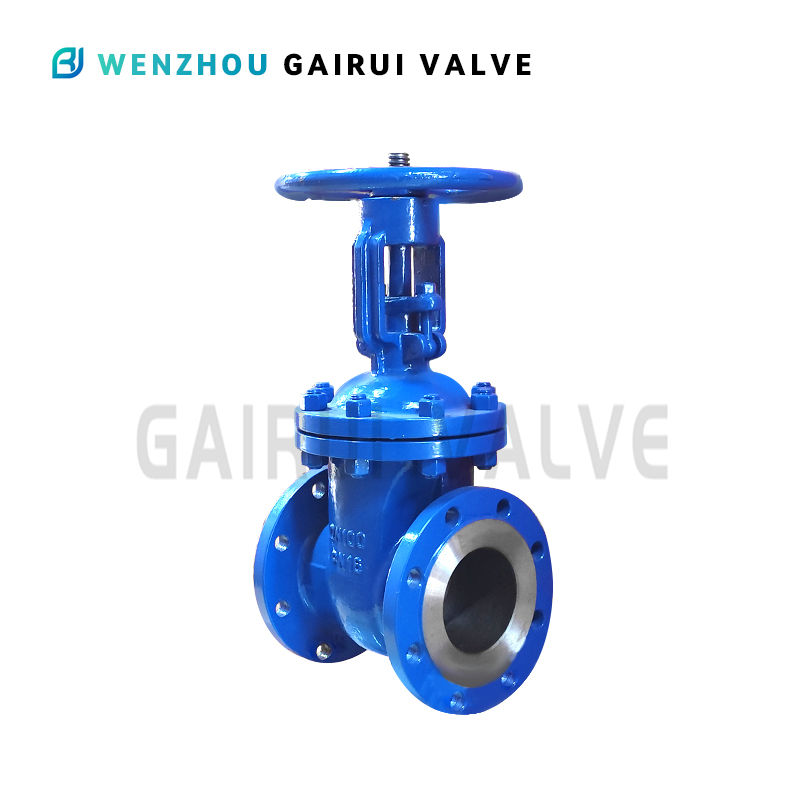

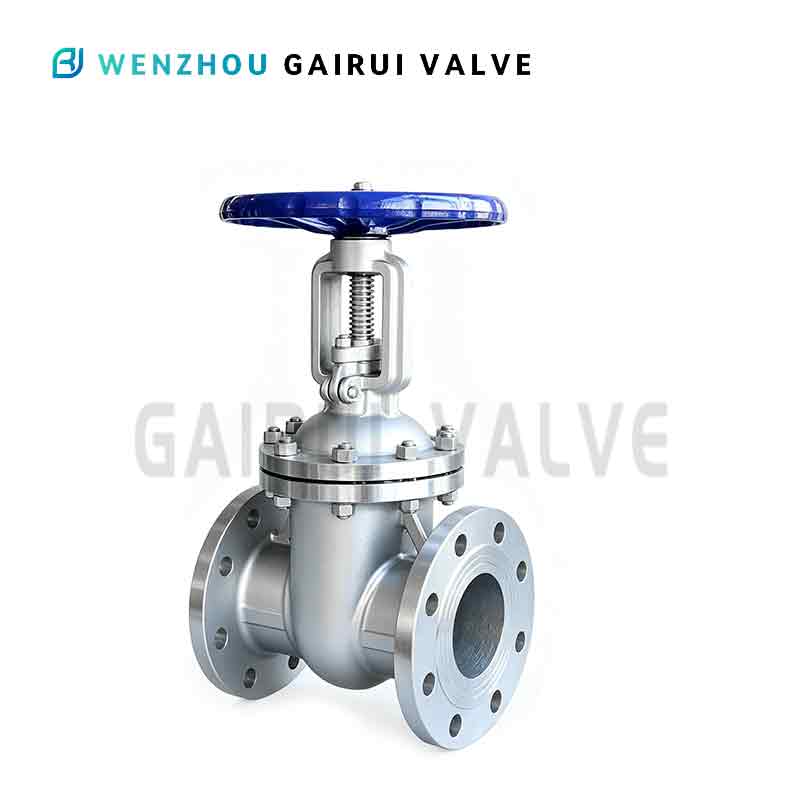

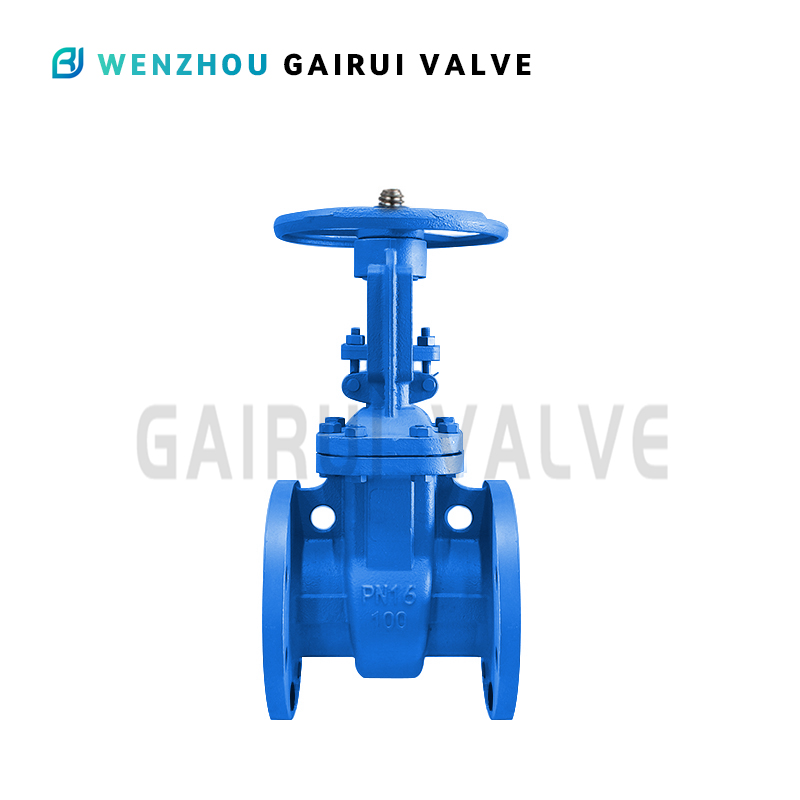

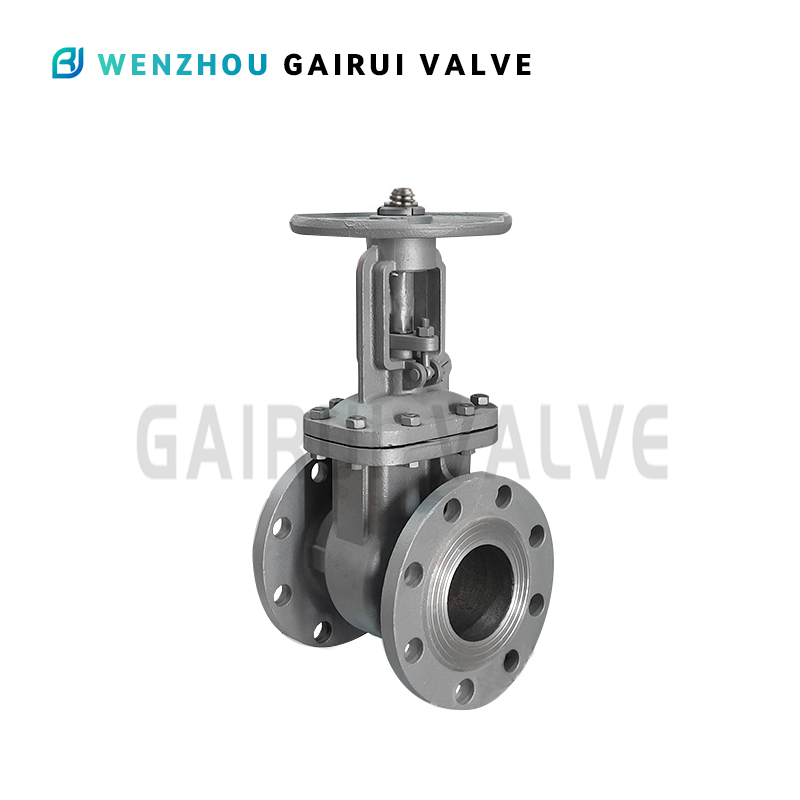

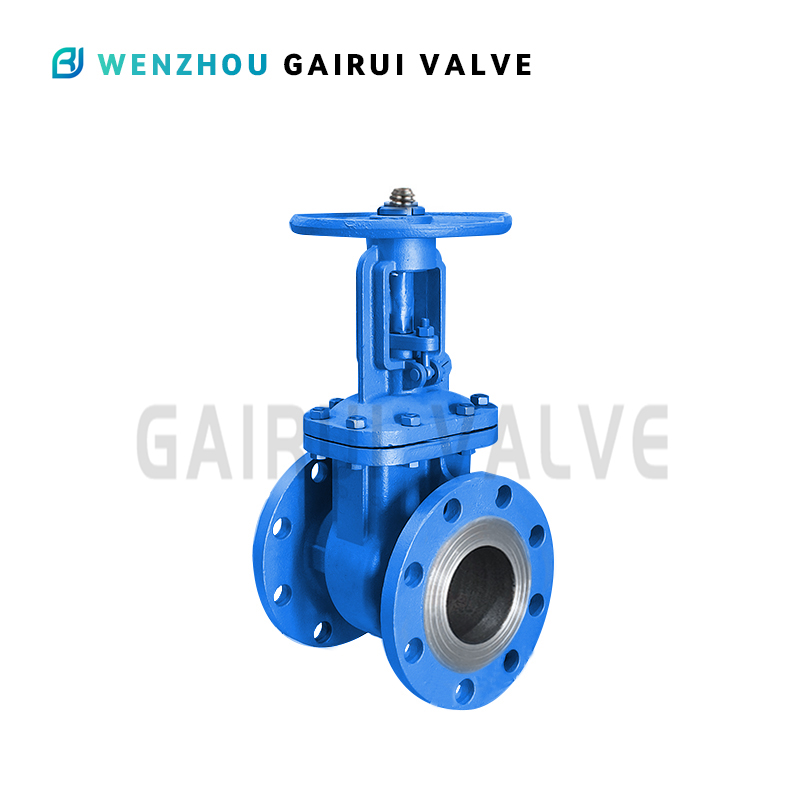

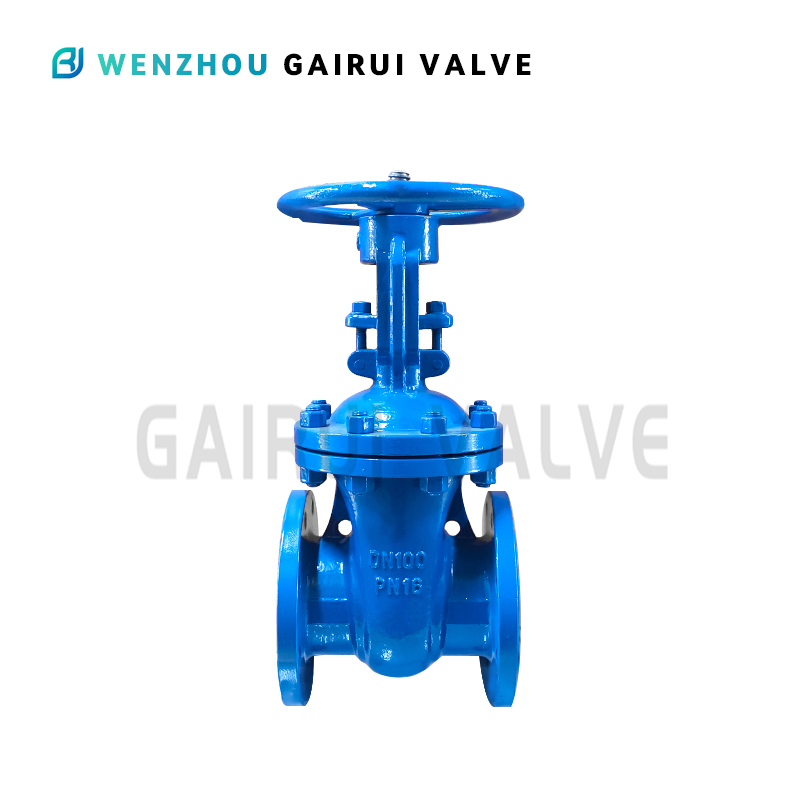

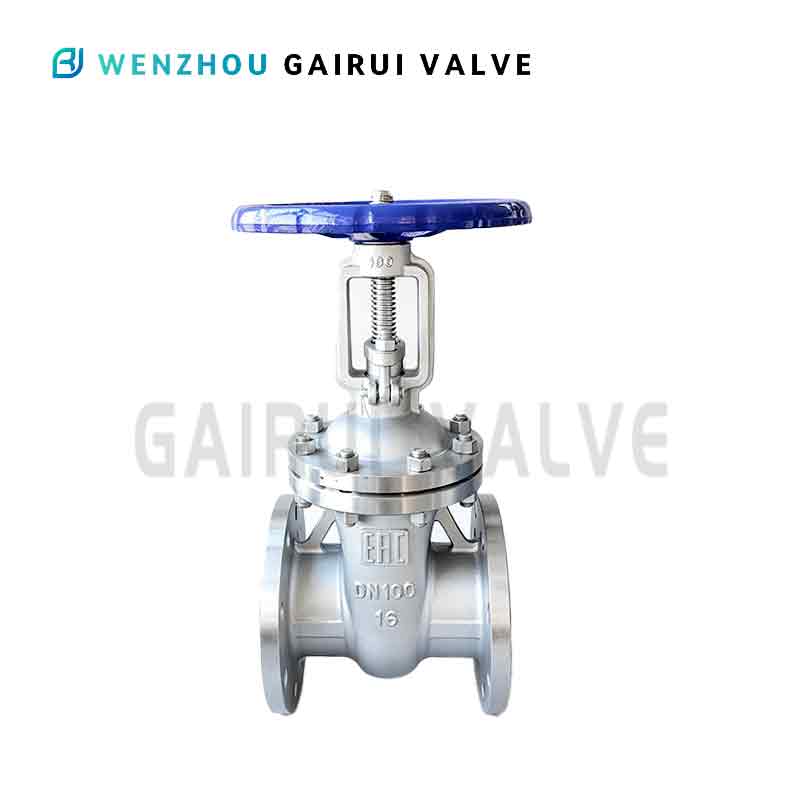

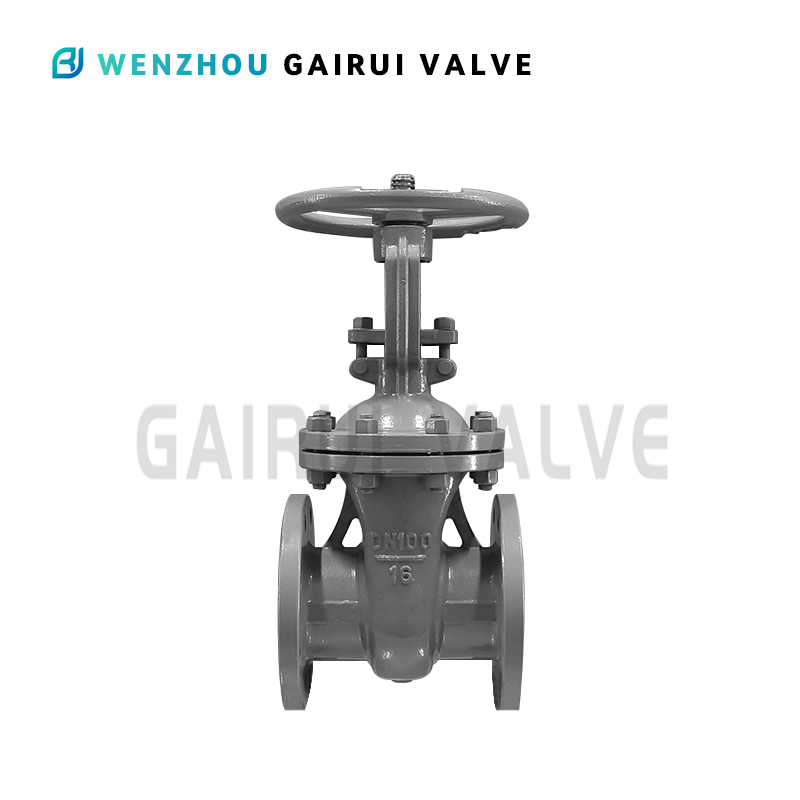

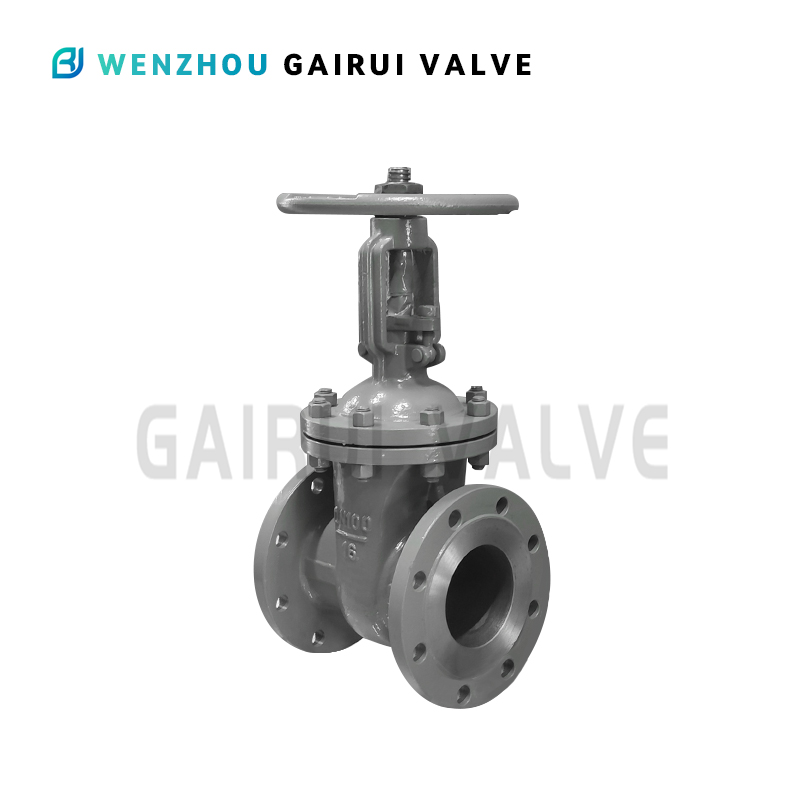

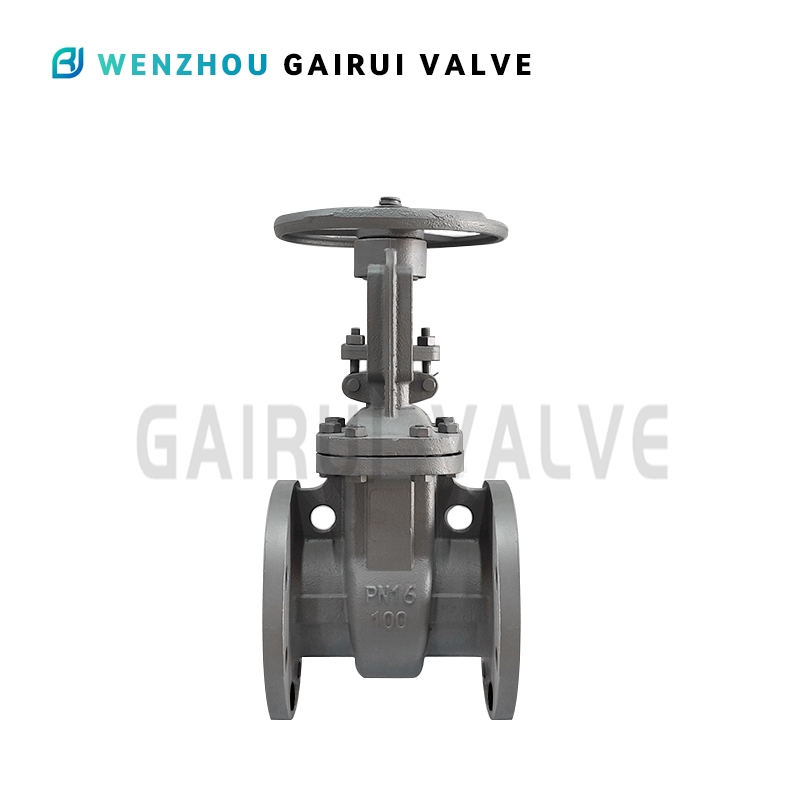

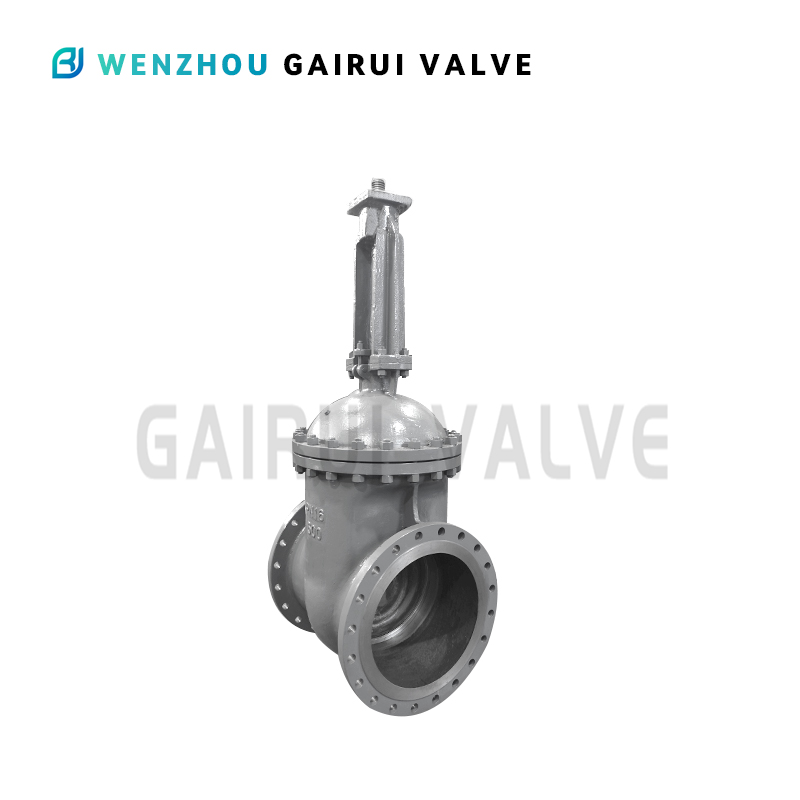

Steel wedge gate valve with rising spindle DN50-1400 РN16
Nominal diameter: from 50 to 1400 mm
Nominal pressure: 1.6 MPa
Working medium: water, steam, petroleum products
Working environment temperature: up to 425 °C (carbon steels)
up to 525 °C (stainless steels)
Description
marker
Product Introduction
◆ Nominal diameter: from 50 to 1400 mm
◆ Nominal pressure: 1.6 MPa
◆ Working medium: water, steam, petroleum products
◆ Working environment temperature: up to 425 °C (carbon steels); up to 525 °C (stainless steels)
◆ Tightness class: A according to GOST 9544-2015
◆ S series - lightweight series
◆ F series - heavy series, with full passage
| PN | Management | Carbon steel (C) | Alloy steel (LS) | Stainless steel (SS) |
| PN16 | flywheel | 30s41nzh | 30ls41nzh | 30nzh41nzh |
| gearbox | 30s541nzh | 30ls541nzh | 30nzh541nzh | |
| electric drive | 30s941nzh | 30ls941nzh | 30nzh941nzh |
Main technical characteristics
| PN | DN | L1 | L2 | L3 | D | D1 | D2 | z-Ø | H | Weight, kg | Electrical type drive | Torque | Number of spindle revolutions |
| 16 | 50 | 180 | 250 | 178 | 160 | 125 | 100 | 4-18 | 310 | 14 | Type A | 52 | 14 |
| 16 | 80 | 210 | 280 | 203 | 195 | 160 | 135 | 4-18 | 435 | 28 | Type A | 60 | 24 |
| 16 | 100 | 230 | 300 | 229 | 215 | 180 | 155 | 8-18 | 445 | 35 | Type A | 86 | 23 |
| 16 | 125 | 255 | 325 | 254 | 245 | 210 | 185 | 8-18 | 570 | 40 | Type A | 100 | 28 |
| 16 | 150 | 280 | 350 | 279 | 280 | 240 | 210 | 8-23 | 630 | 70 | Type A | 120 | 30 |
| 16 | 200 | 330 | 400 | 292 | 335 | 295 | 265 | 12-23 | 735 | 100 | Type B | 210 | 38 |
| 16 | 250 | 450 | – | 330 | 405 | 355 | 320 | 12-25 | 969 | 180 | Type B | 280 | 43 |
| 16 | 300 | 500 | – | 356 | 460 | 410 | 375 | 12-25 | 976 | 280 | Type B | 300 | 52 |
| 16 | 350 | 550 | – | 381 | 520 | 470 | 370 | 12-26 | 1120 | 360 | Type B | 600 | 58 |
| 16 | 400 | 600 | – | 406 | 580 | 525 | 485 | 16-30 | 1452 | 480 | Type B | 900 | 66 |
| 16 | 500 | 700 | – | 457 | 705 | 650 | 608 | 20-34 | 1880 | 850 | Type B | 1200 | 62.5 |
| 16 | 600 | 800 | – | 508 | 840 | 770 | 718 | 20-36 | 1974 | 1300 | Type G | 1800 | 75 |
| 16 | 700 | 900 | – | 612 | 910 | 840 | 800 | 24-39 | 2083 | 1500 | Type G | 2500 | 87.5 |
| 16 | 800 | 1000 | – | 660 | 1020 | 950 | 898 | 24-41 | 2400 | 2200 | Type G | 2800 | 80 |
| 16 | 1000 | 1200 | – | 813 | 1255 | 1170 | 1110 | 28-48 | 3245 | 3800 | Type D | 3500 | 83 |
| 16 | 1200 | 1400 | – | – | 1485 | 1390 | 1330 | 32-52 | 3800 | 5000 | Type D | 8000 | 100 |
| 16 | 1400 | 1600 | – | – | 1685 | 1590 | 1550 | 32-52 | 4500 | 6000 | Type D | 10000 | 116 |
Information exchanges
We actively participate in various industry exhibitions, exchange meetings, etc., deeply understand the industry product dynamics, online communication and on-site inspections, and actively work on product optimization and technical upgrades to better meet the different needs of customers.
