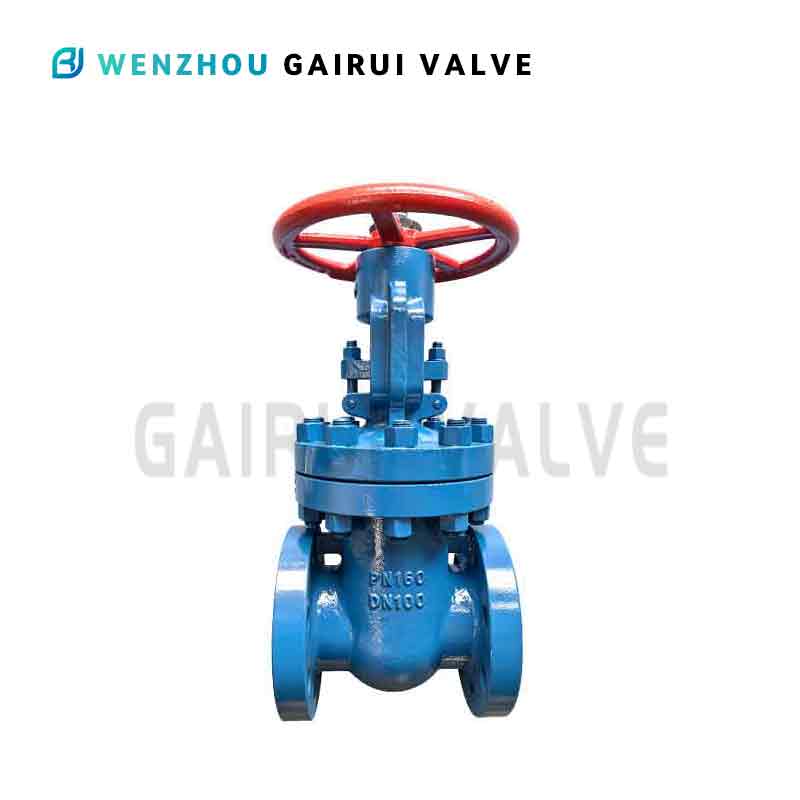

Steel wedge gate valve with rising spindle DN50-300 РN160
Nominal diameter: from 50 to 300 mm
Nominal pressure: 16MPa
Working medium: water, steam, petroleum products
Working environment temperature: up to 425 °C (carbon steels)
up to 525 °C (stainless steels)
Description
marker
Product Introduction
◆ Nominal diameter: from 50 to 300 mm
◆ Nominal pressure: 16MPa
◆ Working medium: water, steam, petroleum products
◆ Working environment temperature: up to 425 °C (carbon steels); up to 525 °C (stainless steels)
◆ Tightness class: A according to GOST 9544-2015
| PN | Management | Carbon steel (C) | Alloy steel (LS) | Stainless steel (SS) |
| PN160 | flywheel | 30s45nzh | 30ls45nzh | 30nzh45nzh |
| gearbox | 30s545nzh | 30hp545nzh | 30nzh545nzh | |
| electric drive | 30s945nzh | 30ls945nzh | 30nzh945nzh |
Main technical characteristics
| PN | DN | L1 | L2 | D | D1 | D2 | D8 | D6 | z-f | H | Weight, kg | Torque | Number of spindle revolutions |
| 160 | 50 | 300 | 292 | 215 | 165 | 132 | 95 | 88 | 8-25 | 512 | 73 | 139 | 15 |
| 160 | 80 | 390 | 356 | 260 | 205 | 168 | 130 | 121 | 8-30 | 585 | 141 | 299 | 18 |
| 160 | 100 | 450 | 432 | 300 | 240 | 200 | 160 | 150 | 8-34 | 631 | 185 | 361 | 22 |
| 160 | 125 | 525 | 480 | 300 | 240 | 200 | 160 | 204 | 8-34 | 631 | 320 | 572 | 22 |
| 160 | 150 | 600 | 559 | 390 | 318 | 270 | 205 | 204 | 12-41 | 820 | 462 | 827 | 27 |
| 160 | 200 | 750 | 660 | 480 | 400 | 345 | 275 | 260 | 12-48 | 990 | 711 | 1535 | 36 |
| 160 | 250 | 838 | 787 | 580 | 485 | 425 | 330 | 313 | 12-54 | 1120 | 1010 | 2040 | 43 |
| 160 | 300 | 965 | 838 | 665 | 570 | 510 | 380 | 364 | 16-54 | 1300 | 1430 | 3241 | 52 |
