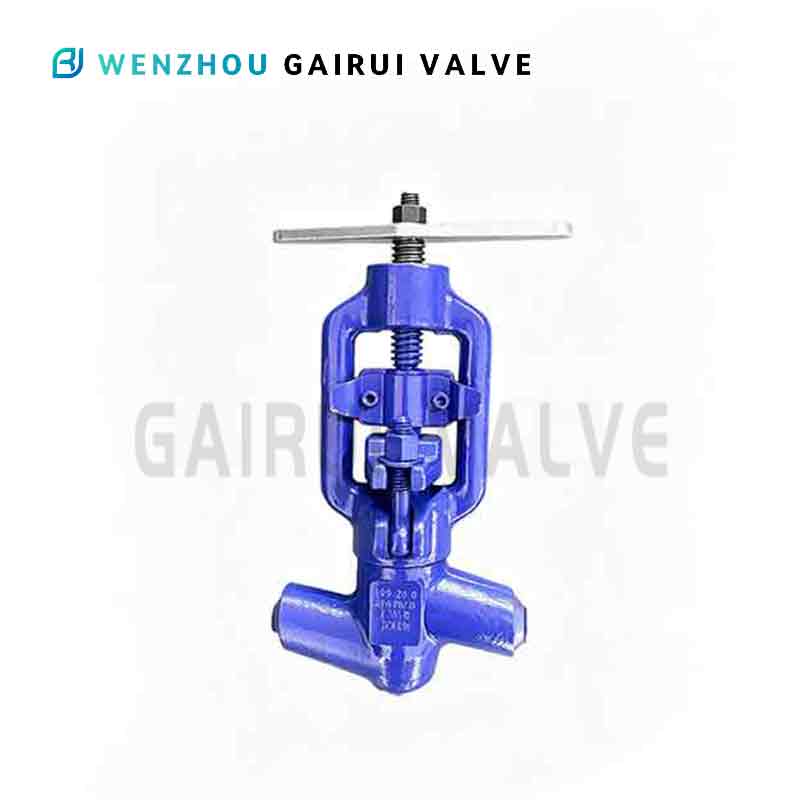

Energy valves
Connection to the pipeline: for welding.
Installation position on the pipeline: any, in the upper hemisphere relative to the neck. Valves (gates) are intended for outdoor installation and installation in enclosed spaces.
Direction of supply of working medium: recommended under the valve.
Description
marker
Product Introduction
◆ Connection to the pipeline: welding.
◆ Installation position on the pipeline: any, in the upper hemisphere relative to the neck. Valves (gates) are intended for outdoor installation and installation in enclosed spaces.
◆ Direction of supply of working medium: recommended under the valve.
◆ Valve tightness: according to class A GOST 9544-2015.
◆ Climatic modification: U, UHL, T according to GOST 15150-69.
◆ Placement category: 1, 2, 3 according to GOST 15150-69.
◆ Shut-off valve (valve) for manual welding: 998-20-0 DN 20 PN 37.3 MPa T280 °C, body st. 20
◆ Shut-off valve (valve) for manual welding: 588-10-0 DN 10 PN 37.3 MPa T280 °C, body st. 20
◆ Shut-off valve (valve) for manual welding: 999-20-0 DN 20 PN 25 MPa T545 °C, body st. 12Х1МФ
◆ Shut-off valve (valve) for manual welding: 589-10-0 DN 10 PN 25 MPa T545 °C, body st. 12Х1МФ
Main technical characteristics
| DN | PN | L, mm | Tp, °C | Material | Mcr, Nm | Weight, no more | H, mm | Weight, kg | |
| 998-20-0 | 20 | 37.3 | 160 | 280 | steel 20 | 80 | 5 | 260 | 6.2 |
| 588-10-0 | 10 | 37.3 | 110 | 280 | steel 20 | 25 | 3.8 | 200 | 3.2 |
| 999-20-0 | 20 | 25.0 | 160 | 545 | steel 12Х1МФ | 80 | 5 | 260 | 6.2 |
| 589-10-0 | 10 | 25.0 | 110 | 545 | steel 12Х1МФ | 25 | 3.8 | 200 | 3.2 |
